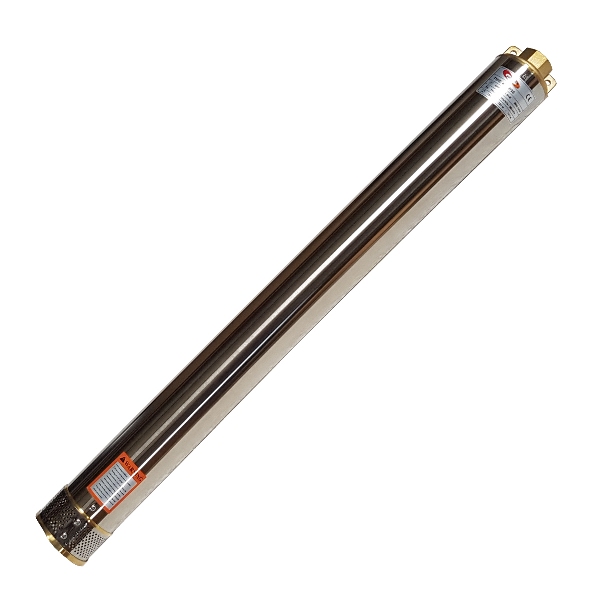

4SD2/28 Borehole Submersible Pump End Only 1.5KW
R 1,587.00
SKU:hup-4sd2/28
Product Details
The Hurricane 4SD2/28 borehole submersible pump end requires a 1.5Kw submersible motor to drive it and is capable of delivering up to 10L/min at a depth of 192m. \nOperating Conditions
\n-
\n
- Maximum fluid temperature : up to 35°C \n
- Maximum sand content : 0.25% \n
- Minimum borehole diameter : 4" (10.16cm) \n
Motor & Pump
\nSingle Phase : 220V - 240V 1.5KW 2HP / 50Hz or \n Three Phase : 380V - 415V 1.5KW 2HP/ 50Hz \n Equip with either a standard (manual) or an automatic control box 1.5KW 2HP (water level sensors) \nWarranty : 12 Month
\nAccording to our general sales conditions \nSpecifications
\n-
\n
- Speed : 2850RPM \n
- Power : 1.5KW \n
- Power : 2HP \n
- Outlet : 32mm \n
- Pump Diameter : 100mm \n
- Pump Length : 944mm \n
- Pump Wieght : 8.1KG \n

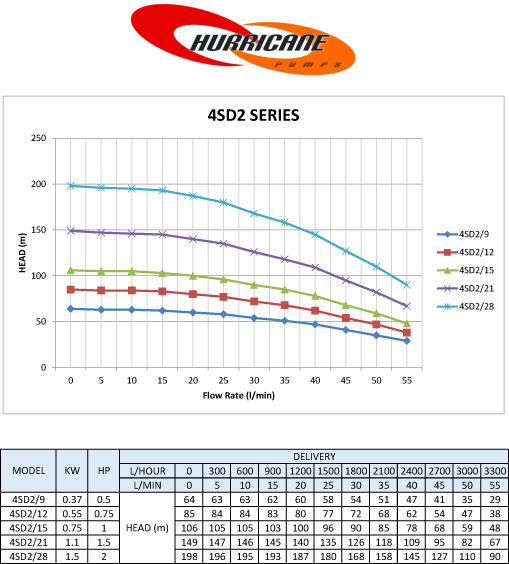

Water Delivery Pump Curve
\n
